Model

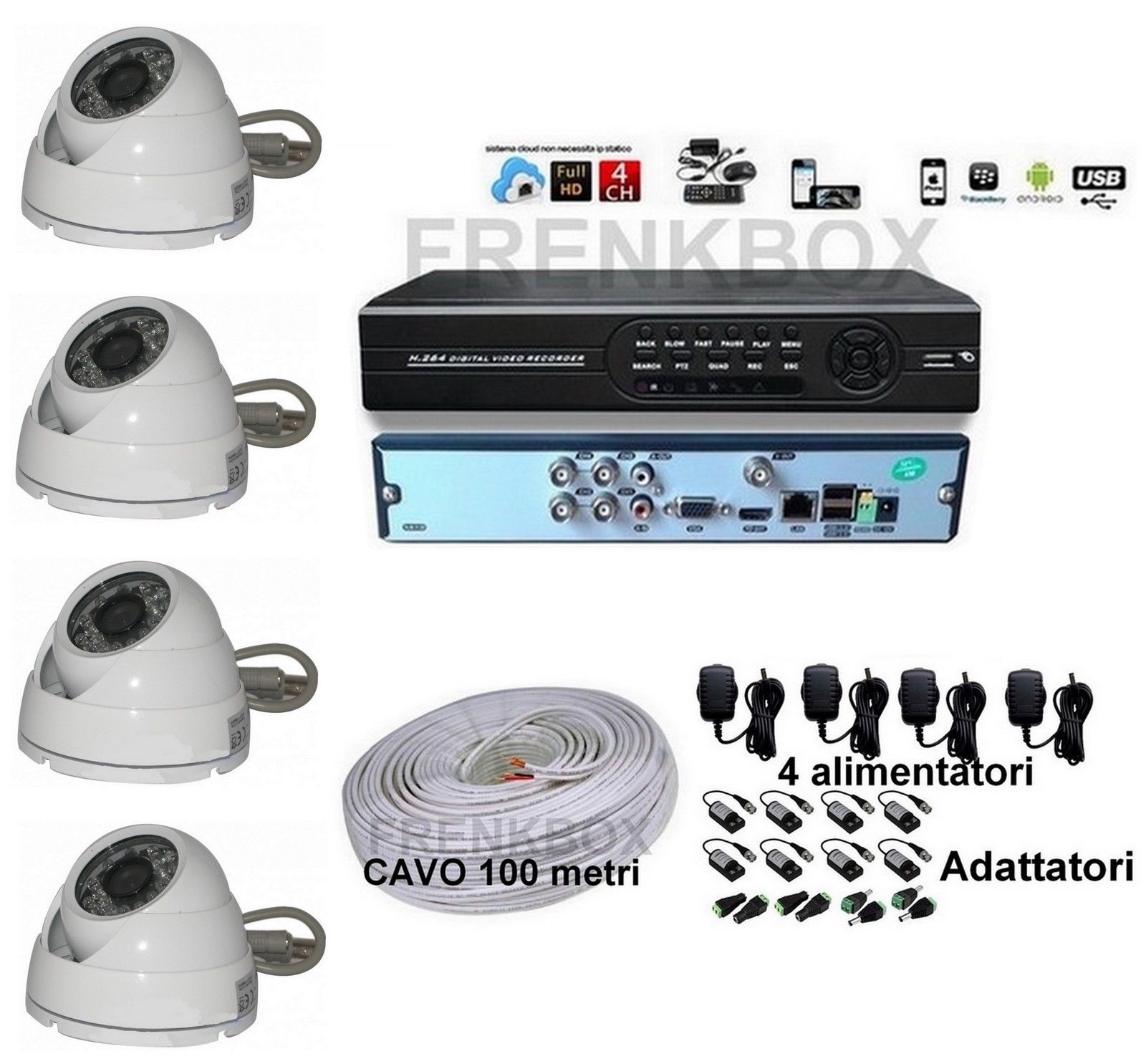

4 Channel H.264 DVR

8 Channel H.264 DVR

DVR-H3804BW (A,K,R)-S

DVR-H3808BW (A,K,R)-S

System

Main processor

Industrial grade embedded micro controller chip Huawei Hisilicon chipset 3520A

Operating system

Embedded LINUX operating system

System resource

Multi-channel real-time recording synchronously, multi-channel real-time playback,
multi-channel multi-user network operation, USB back up.

Display

Operation interface

16 bit real color GUI interface support mouse operation

Multilingual Language

YES, 28 kinds of language

Display screen

1/4 screen

1/4/8/9 screen

Video

Video standard

PAL(625 lines, 50fps); NTSC(525lines, 60fps)

Image encode

H.264(Main Profile); JPEG Snapshot

Monitor quality

Monitor:D1; VGA & HDMI: (1920*1080,1280*720,1440*900,1280*1024,1024*768, 800*600)

Playback quality

960H/D1/HD1/CIF

D1/HD1/CIF

Encode capability

4CH real time 960H/D1

8CH non-real time 960H@12fps;
8CH real time D1@25fps;
8CH non-real time D1@15fps

Decode capability

4CH real time 960H/D1

2CH 960H@12fps;
 4CH D1(1D1@25fps+3D1);
8CH D1@15fps

Multi-mode input

NO

Audio

Audio compression

G.711A

Record and playback

Record mode

Manual, alarm, motion detection, timing

Snapshot

D1 mode: Support automatic capture function (0.5 S/frame,1 S/frame…5 S/frame)

Local playback

Max. 4CH 960H / D1 playback / 4*960H@25fps

Max 2CH 960H@12fps;
 Max 4CH D1(1D1@25fps+3D1);
Max 8CH D1@15fps

Video search

Time, date, event, channel search

Storage and back up

Space Usage

Video: CIF 4~5G/day*channel; D1 8~20G/day*channel; Audio: 691.2M/day*channel

Video storage

Local Hard Disk, Network

Back up mode

Network backup, USB portable HDD, USB DVD-RW

Interface

Video input

4CH BNC(1.0Vp-p,75?)

8CH BNC(1.0Vp-p,75?)

Video output

1CH BNC(1.0Vp-p,75?), 1CH VGA, 1CH HDMI

Audio input

4CH RCA  (200-2800mV,30K?)

Audio output

1CH RCA (200-3000mV,5K?)

Alarm input

4CH optional

Alarm output

1CH optional

Network port

1*RJ45 10/100 Base-T self-adaptive Ethernet port

PTZ control

1*RS485 port,Support more than 20 kinds protocols.

USB port

2*USB 2.0 port

HDD port

Accommodates 1 SATA HDDs (1 HDD capacity up to 3TB)

Wireless Port

3G & WIFI (extension via USB port)

User

User level

Admin / User

User right

Users can set different permissions (How to use please refer to the manual book)

Password protection

YES

Remote

Remote Independent Operation

YES

Download records

YES

Remote Event Trigger Recording

YES

CMS

CMS Software for multiple DVR (up to 255 DVR simultaneously)

Browser

Internet Explorer, Mozilla Firefox, Google Chrome, Safari

Live Audio

YES

On-line user

Max. 10

Mobile Surveillance

YES (Support iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android;iPad, iPhone, Andriod have remote playback function)

Network Protocol

DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center

Alarm

Motion detection

16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only)

Event Notification

FTP / E-Mail

Pre-alarm Recording

YES

Video loss

Video loss notification

Other

IR remote controller

Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in)

Cooling fan

NO

Tour

YES

Power Source (±10%)

DC 12V / 2A

Power Consumption (±10%)

<15W (Without HDD)
