Model |
4 Channel H.264 DVR |
8 Channel H.264 DVR |
|
|
DVR-H3804BW (A,K,R)-S |
DVR-H3808BW (A,K,R)-S |
|||
|
System |
Main processor |
Industrial grade embedded micro controller chip Huawei Hisilicon chipset 3520A |
||
|
Operating system |
Embedded LINUX operating system |
|||
|
System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, |
|||
|
Display |
Operation interface |
16 bit real color GUI interface support mouse operation |
||
|
Multilingual Language |
YES, 28 kinds of language |
|||
|
Display screen |
1/4 screen |
1/4/8/9 screen |
||
|
Video |
Video standard |
PAL(625 lines, 50fps); NTSC(525lines, 60fps) |
||
|
Image encode |
H.264(Main Profile); JPEG Snapshot |
|||
|
Monitor quality |
Monitor:D1; VGA & HDMI: (1920*1080,1280*720,1440*900,1280*1024,1024*768, 800*600) |
|||
|
Playback quality |
960H/D1/HD1/CIF |
D1/HD1/CIF |
||
|
Encode capability |
4CH real time 960H/D1 |
8CH non-real time 960H@12fps; |
||
|
Decode capability |
4CH real time 960H/D1 |
2CH 960H@12fps; |
||
|
Multi-mode input |
NO |
|||
|
Audio |
Audio compression |
G.711A |
||
|
Record and playback |
Record mode |
Manual, alarm, motion detection, timing |
||
|
Snapshot |
D1 mode: Support automatic capture function (0.5 S/frame,1 S/frame…5 S/frame) |
|||
|
Local playback |
Max. 4CH 960H / D1 playback / 4*960H@25fps |
Max 2CH 960H@12fps; |
||
|
Video search |
Time, date, event, channel search |
|||
|
Storage and back up |
Space Usage |
Video: CIF 4~5G/day*channel; D1 8~20G/day*channel; Audio: 691.2M/day*channel |
||
|
Video storage |
Local Hard Disk, Network |
|||
|
Back up mode |
Network backup, USB portable HDD, USB DVD-RW |
|||
|
Interface |
Video input |
4CH BNC(1.0Vp-p,75?) |
8CH BNC(1.0Vp-p,75?) |
|
|
Video output |
1CH BNC(1.0Vp-p,75?), 1CH VGA, 1CH HDMI |
|||
|
Audio input |
4CH RCA (200-2800mV,30K?) |
|||
|
Audio output |
1CH RCA (200-3000mV,5K?) |
|||
|
Alarm input |
4CH optional |
|||
|
Alarm output |
1CH optional |
|||
|
Network port |
1*RJ45 10/100 Base-T self-adaptive Ethernet port |
|||
|
PTZ control |
1*RS485 port,Support more than 20 kinds protocols. |
|||
|
USB port |
2*USB 2.0 port |
|||
|
HDD port |
Accommodates 1 SATA HDDs (1 HDD capacity up to 3TB) |
|||
|
Wireless Port |
3G & WIFI (extension via USB port) |
|||
|
User |
User level |
Admin / User |
||
|
User right |
Users can set different permissions (How to use please refer to the manual book) |
|||
|
Password protection |
YES |
|||
|
Remote |
Remote Independent Operation |
YES |
||
|
Download records |
YES |
|||
|
Remote Event Trigger Recording |
YES |
|||
|
CMS |
CMS Software for multiple DVR (up to 255 DVR simultaneously) |
|||
|
Browser |
Internet Explorer, Mozilla Firefox, Google Chrome, Safari |
|||
|
Live Audio |
YES |
|||
|
On-line user |
Max. 10 |
|||
|
Mobile Surveillance |
YES (Support iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android;iPad, iPhone, Andriod have remote playback function) |
|||
|
Network Protocol |
DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center |
|||
|
Alarm |
Motion detection |
16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only) |
||
|
Event Notification |
FTP / E-Mail |
|||
|
Pre-alarm Recording |
YES |
|||
|
Video loss |
Video loss notification |
|||
|
Other |
IR remote controller |
Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) |
||
|
Cooling fan |
NO |
|||
|
Tour |
YES |
|||
|
Power Source (±10%) |
DC 12V / 2A |
|||
|
Power Consumption (±10%) |
<15W (Without HDD) |
|||
|
Operating |
||||

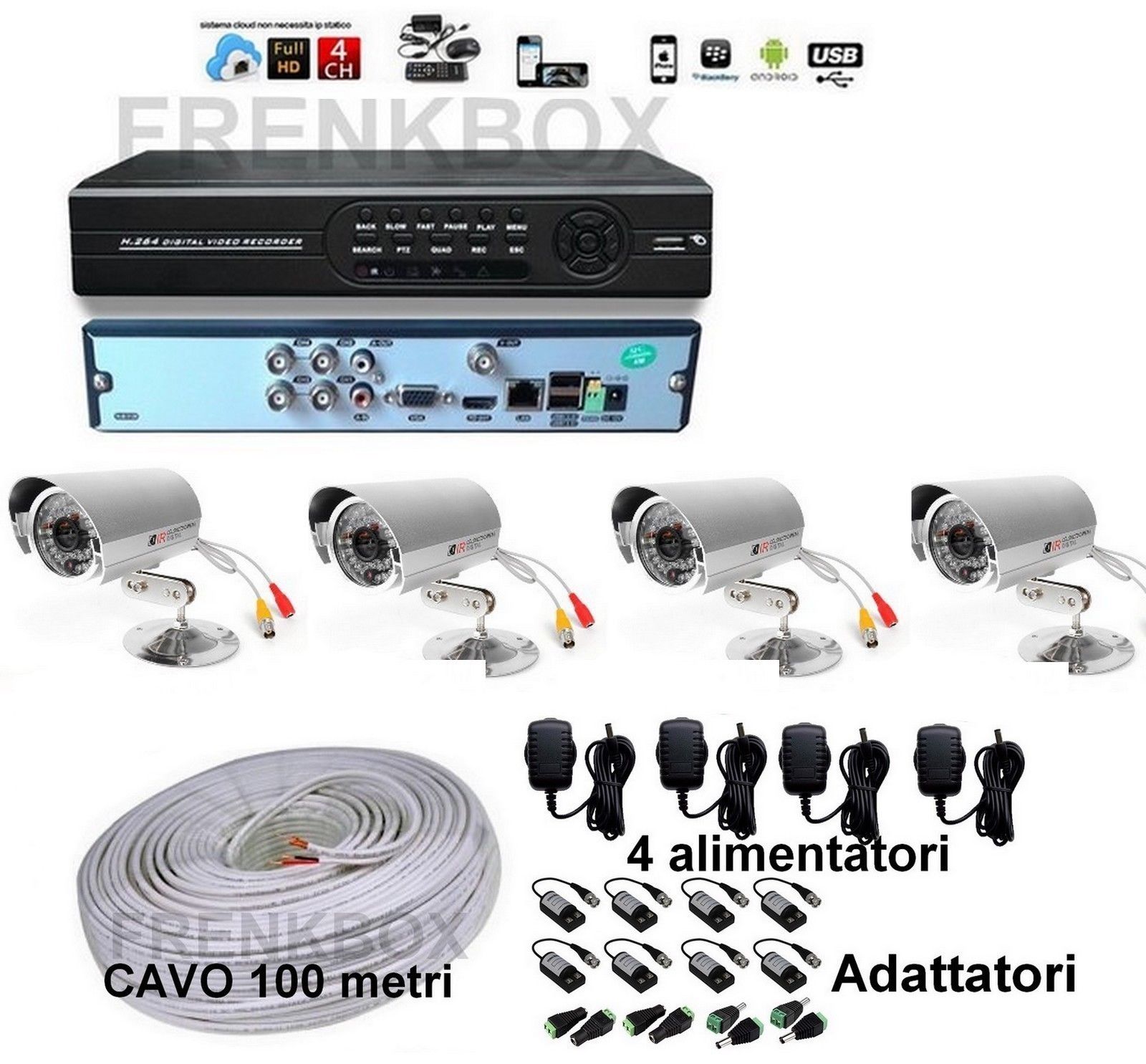

Caratteristiche telecamerte:
Telecamera Videosorveglianza con sensore CCD prodotto dalla Sharp. colore come da foto.
Angolo visuale maggiore di 79 gradi, impermeabile al 100%, visione notturna anche in assenza totale di luce.
La telecamera monta un sensore CCD a colori
Definizione 1200 Linee TV
LENTE DA 3,6mm Che significa massimo angolo di apertura orizzontale possibile
Alimentazione 9-12V alimentatore incluso
Staffa snodabile in metallo, inclusa nella confezione.
Il collegamento video viene fatto attraverso l'attacco BCN
Alimentazione attraverso l'attacco dello spinotto DC grande standard.(Alimentatore di corrente incluso)
Dati tecnici:
Sensore : Sharp CCD
Obiettivo= 14
Lente= 3,6mm
System= PALNTSC automatico
Risoluzione= 1200 linee
Frequenza scann: 50hz-60hz
Illuminazione minima= 0,2 lux
Sensitività = 18db
Alimentazione= 9-12 volts
Consumo= 200mw
Angolo visuale= 79°
Colori= SI
Visione notturna= Si entro 18 metri
Grazie ai 49 led infrarossi ha un ottima vbisione notturna nel suo campo di visuale (entro 15-18 metri circa)
Consiglio: ideale per piccoli ed ampi spazi dova la distanza tra il punto di installazione della telecamera e la zona limite da osservare non supera i 15 metri.
