Model
|
4 Channel H.264 DVR
|

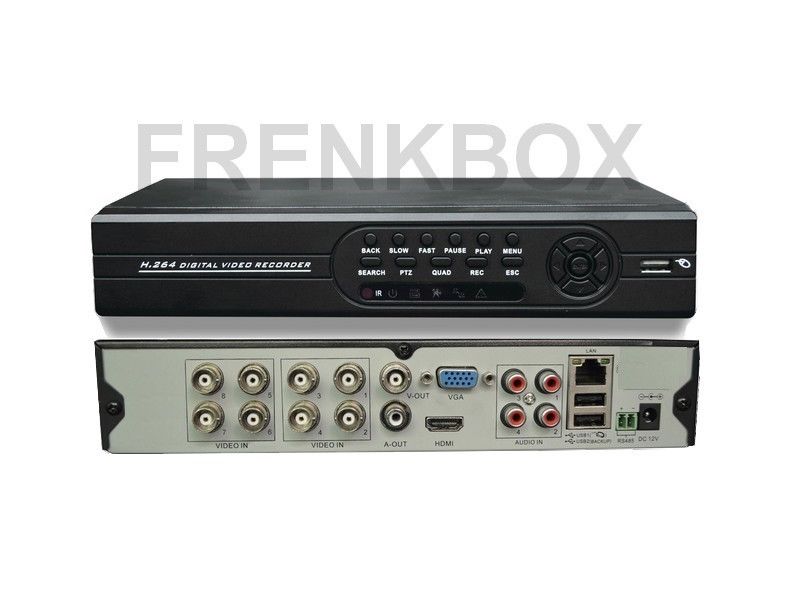

8 Channel H.264 DVR
|
|
DVR-H3804BW (A,K,R)-S
|
DVR-H3808BW (A,K,R)-S
|
|
System
|
Main processor
|
Industrial grade embedded micro controller chip Huawei Hisilicon chipset 3520A
|
|
Operating system
|
Embedded LINUX operating system
|
|
System resource
|
Multi-channel real-time recording synchronously, multi-channel real-time playback,
multi-channel multi-user network operation, USB back up.
|
|
Display
|
Operation interface
|
16 bit real color GUI interface support mouse operation
|
|
Multilingual Language
|
YES, 28 kinds of language
|
|
Display screen
|
1/4 screen
|
1/4/8/9 screen
|
|
Video
|
Video standard
|
PAL(625 lines, 50fps); NTSC(525lines, 60fps)
|
|
Image encode
|
H.264(Main Profile); JPEG Snapshot
|
|
Monitor quality
|
Monitor:D1; VGA & HDMI: (1920*1080,1280*720,1440*900,1280*1024,1024*768, 800*600)
|
|
Playback quality
|
960H/D1/HD1/CIF
|
D1/HD1/CIF
|
|
Encode capability
|
4CH real time 960H/D1
|
8CH non-real time 960H@12fps;
8CH real time D1@25fps;
8CH non-real time D1@15fps
|
|
Decode capability
|
4CH real time 960H/D1
|
2CH 960H@12fps;
4CH D1(1D1@25fps+3D1);
8CH D1@15fps
|
|
Multi-mode input
|
NO
|
|
|
Audio
|
Audio compression
|
G.711A
|
|
Record and playback
|
Record mode
|
Manual, alarm, motion detection, timing
|
|
Snapshot
|
D1 mode: Support automatic capture function (0.5 S/frame,1 S/frame…5 S/frame)
|
|
Local playback
|
Max. 4CH 960H / D1 playback / 4*960H@25fps
|
Max 2CH 960H@12fps;
Max 4CH D1(1D1@25fps+3D1);
Max 8CH D1@15fps
|
|
Video search
|
Time, date, event, channel search
|
|
Storage and back up
|
Space Usage
|
Video: CIF 4~5G/day*channel; D1 8~20G/day*channel; Audio: 691.2M/day*channel
|
|
Video storage
|
Local Hard Disk, Network
|
|
Back up mode
|
Network backup, USB portable HDD, USB DVD-RW
|
|
Interface
|
Video input
|
4CH BNC(1.0Vp-p,75?)
|
8CH BNC(1.0Vp-p,75?)
|
|
Video output
|
1CH BNC(1.0Vp-p,75?), 1CH VGA, 1CH HDMI
|
|
Audio input
|
4CH RCA (200-2800mV,30K?)
|
|
Audio output
|
1CH RCA (200-3000mV,5K?)
|
|
Alarm input
|
4CH optional
|
|
Alarm output
|
1CH optional
|
|
Network port
|
1*RJ45 10/100 Base-T self-adaptive Ethernet port
|
|
PTZ control
|
1*RS485 port,Support more than 20 kinds protocols.
|
|
USB port
|
2*USB 2.0 port
|
|
HDD port
|
Accommodates 1 SATA HDDs (1 HDD capacity up to 3TB)
|
|
Wireless Port
|
3G & WIFI (extension via USB port)
|
|
User
|
User level
|
Admin / User
|
|
User right
|
Users can set different permissions (How to use please refer to the manual book)
|
|
Password protection
|
YES
|
|
Remote
|
Remote Independent Operation
|
YES
|
|
Download records
|
YES
|
|
Remote Event Trigger Recording
|
YES
|
|
CMS
|
CMS Software for multiple DVR (up to 255 DVR simultaneously)
|
|
Browser
|
Internet Explorer, Mozilla Firefox, Google Chrome, Safari
|
|
Live Audio
|
YES
|
|
On-line user
|
Max. 10
|
|
Mobile Surveillance
|
YES (Support iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android;iPad, iPhone, Andriod have remote playback function)
|
|
Network Protocol
|
DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center
|
|
Alarm
|
Motion detection
|
16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only)
|
|
Event Notification
|
FTP / E-Mail
|
|
Pre-alarm Recording
|
YES
|
|
Video loss
|
Video loss notification
|
|
Other
|
IR remote controller
|
Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in)
|
|
Cooling fan
|
NO
|
|
Tour
|
YES
|
|
Power Source (±10%)
|
DC 12V / 2A
|
|
Power Consumption (±10%)
|
<15W (Without HDD)
|
|
Operating Temperature
|
0? ~ +55?
|
|
Dimensions (mm) **
|
325mm(L)* 245mm(W)* 52mm(H)
|
|
